E2EQ-X2B1T8-M1 Cảm biến tiệm cận OMRON E2EQ NEXT

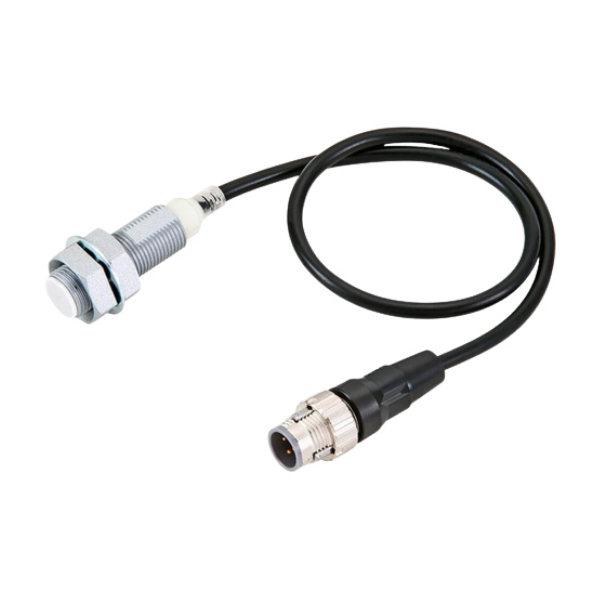

E2EQ-X2B1T8-M1 OMRON Inductive Proximity Sensor

The E2EQ-X2B1T8-M1 is a high-performance inductive proximity sensor featuring an M8 size, shielded mounting, and a 2x extended sensing distance of 2 mm. Designed for industrial automation and welding applications, this DC 3-wire sensor incorporates a fluororesin coating and fluororesin sensing surface over a stainless steel SUS303 case to deliver robust weld spatter resistance.

• Extended Range Sensing: The 2 mm sensing distance provides greater clearance between the sensor and targets, reducing target contact and minimizing mechanical wear and downtime.
• IO-Link Communication: Equipped with COM3 IO-Link functionality, supporting real-time condition monitoring and device diagnostics in automated control architectures.
• Compact Form Factor: Short body construction with a M8 thread size and overall length of 43 mm allows flexible installation in space-constrained machinery.
• Electrical Configuration: Operates on a 10 to 30 VDC supply voltage, featuring a PNP output type with NO operation.
• Connection and Protection: Features an M12 4-pin connector interface and achieves an IP67 protection rating for reliable operation in demanding environments.

Technical Specifications and Application of OMRON E2EQ-X2B1T8-M1

The OMRON E2EQ-X2B1T8-M1 sensor is suited for integration into automated production lines, robotics, and welding cells where weld spatter resistance, compact M8 sizing, reliable PNP NO switching, and IO-Link connectivity are required. Kỹ Thương Việt Trung cung cấp thông tin kỹ thuật chính xác cho các kỹ sư tự động hóa, bảo trì và tích hợp hệ thống.
