E2F-X5E1 Cảm biến tiệm cận OMRON IP68 M18 NPN DC

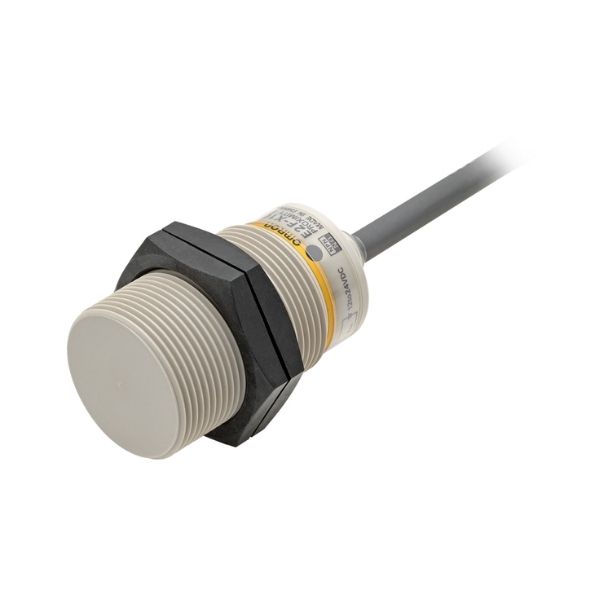

OMRON E2F-X5E1 IP68 Plastic Housing Inductive Proximity Sensor

OMRON E2F-X5E1 is a cylindrical inductive proximity sensor featuring an M18 size and a 5 mm sensing distance. Designed with a full-body polyarylate resin plastic housing, this sensor supports applications requiring IP68 high water resistance and light chemical resistance. It operates on a DC 3-wire architecture with an NPN output and offers NO/NC selectable switching logic for flexible control integration.

• Sensing Distance: 5 mm with shielded M18 configuration, supporting flush mounting when aligned with installation requirements.
• Housing & Material: Full-body polyarylate resin plastic housing that avoids traditional metal construction, aiding water resistance and basic chemical tolerance.
• Electrical Specifications: DC 3-wire system with 12 to 24 VDC supply voltage, NPN output type, and selectable NO/NC operation.
• Environmental Protection: IP68 water ingress protection rating suitable for damp or moisture-prone operating conditions.
• Connection: Pre-wired with a 2 m PVC cable for direct machine integration.

Technical Specifications and Application of OMRON E2F-X5E1

The OMRON E2F-X5E1 sensor is suited for automated machinery, packaging equipment, conveyor systems, and industrial environments where moisture resistance and reliable non-contact metallic target detection are required.
